Xyron SUV 2.9 full suspension
black metallic / desert matt
4,699.95€ *
E-SUV ➜ Material: aluminium ✓ Weight: 29,50 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
Product information
"Xyron SUV 2.9 full suspension "

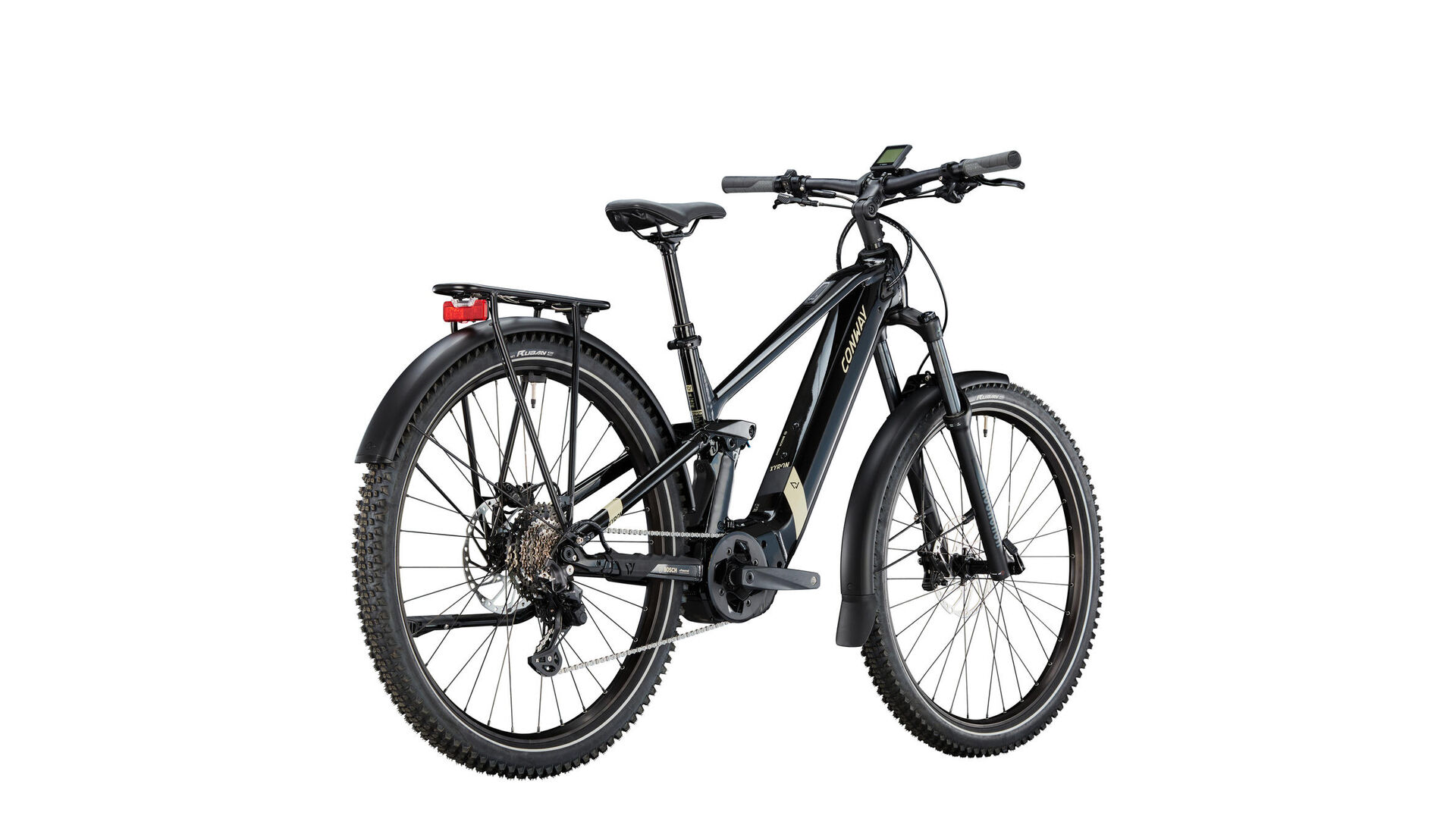

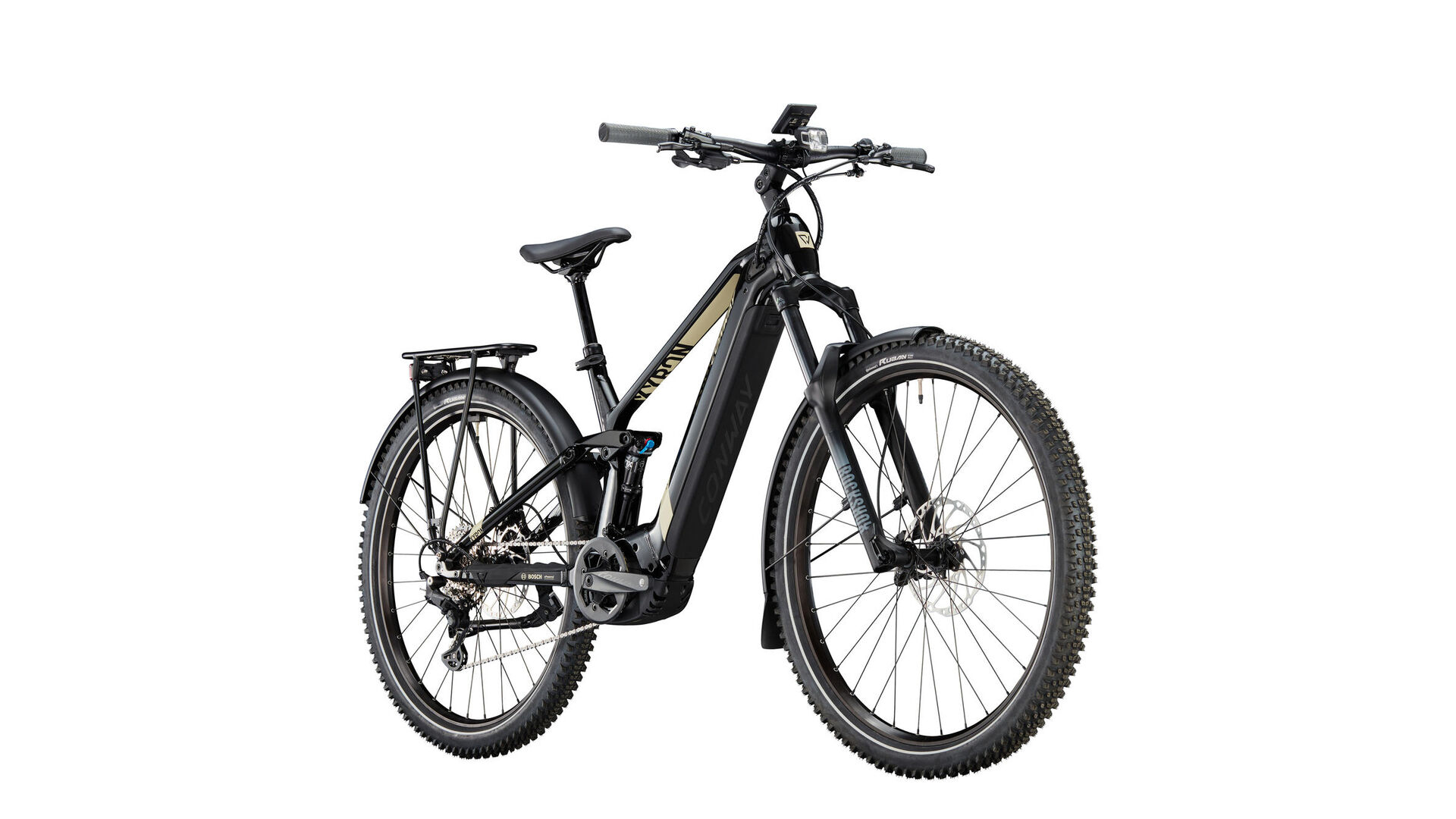

Our "Xyron SUV 2.9" is probably the most comfortable and suitable for everyday use E-MTB. Equipped with light, rack and mudguards, it combines the comfort of an e-full suspension bike with the practicality of an urban bike.
It impresses with the powerful Bosch "Performance CX" Gen. 4 motor and the new smart system. The E-Bike Flow app, the battery, the display, the control unit and the drive unit are fully connected in the smart system and allow you to completely customize your riding experience as well as retrieve current and past tour data.
The 625 Wh battery reliably supplies you with the necessary power so that you can enjoy your time on your bike even longer. Visually, the Bosch Intube battery is not noticeable at all, as it is completely integrated into the down tube and the E-SUV retains the slim silhouette of a bicycle.
The modern geometry, sporty chassis and powerful brakes also ensure plenty of fun on the trail. Our "Xyron SUV 2.9" is a bike that is equally convincing on leisurely tours and exciting trail rides.
It impresses with the powerful Bosch "Performance CX" Gen. 4 motor and the new smart system. The E-Bike Flow app, the battery, the display, the control unit and the drive unit are fully connected in the smart system and allow you to completely customize your riding experience as well as retrieve current and past tour data.
The 625 Wh battery reliably supplies you with the necessary power so that you can enjoy your time on your bike even longer. Visually, the Bosch Intube battery is not noticeable at all, as it is completely integrated into the down tube and the E-SUV retains the slim silhouette of a bicycle.
The modern geometry, sporty chassis and powerful brakes also ensure plenty of fun on the trail. Our "Xyron SUV 2.9" is a bike that is equally convincing on leisurely tours and exciting trail rides.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, aluminium, full suspension, 40cm |
| Dropout: | CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20 |
| Fork: | ROCKSHOX suspension fork "Recon Silver RL", 29", 150mm travel, tapered, post mount, boost, Maxle Lite thru axle, 42mm offset, black |
| Headset: | ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below |

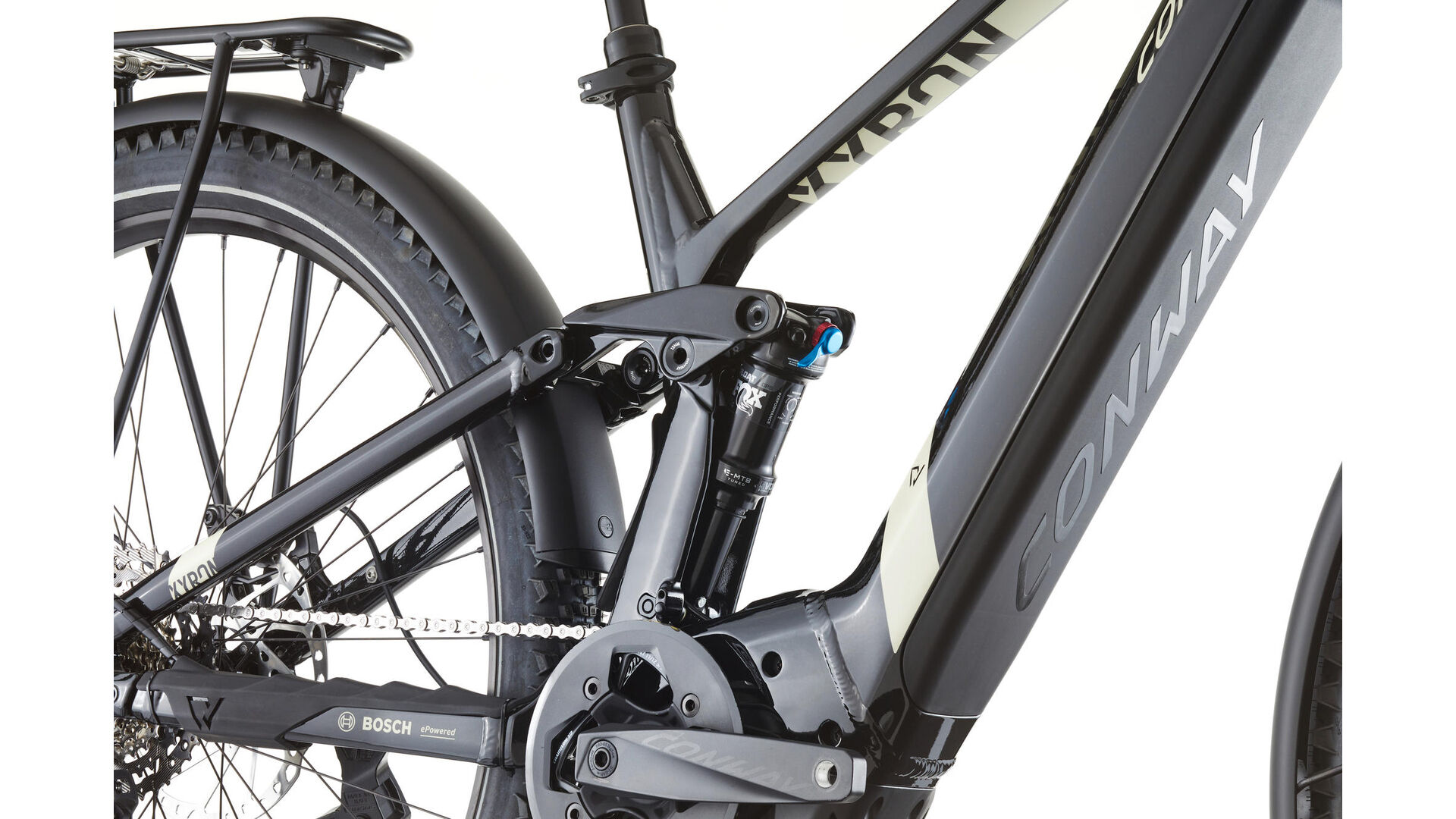

| Rear shock: | FOX "Float DPS", 185 x 50mm |
| Crank set: | MIRANDA "Epsilon", boost, 165mm, 36 teeth, for Bosch Gen.4, ISIS, black |
| Bremse V.R.: | SHIMANO disc brake "BL-M4100 / BR-MT420", hydraulic, post mount, adapter for 203mm |
| Bremse H.R.: | SHIMANO disc brake "BL-M4100 / BR-MT420", hydraulic, adapter for 203mm |
| Front rotor: | SHIMANO "SM-RT64", Ø 203mm, Center Lock |
| Rear rotor: | SHIMANO "SM-RT64", Ø 203mm, Center Lock |
| Shifting lever: | SHIMANO "Deore SL-M5130-R10", LINKGLIDE, 10-speed |
| Rear derailleur: | SHIMANO "Deore RD-M5130-GS", LINKGLIDE, medium cage |
| Cassette / belt sprocket: | SHIMANO "CS-LG600", LINKGLIDE, 10-speed, 11-43 teeth |
| Chain / belt: | SHIMANO "CN-LG500", LINKGLIDE |

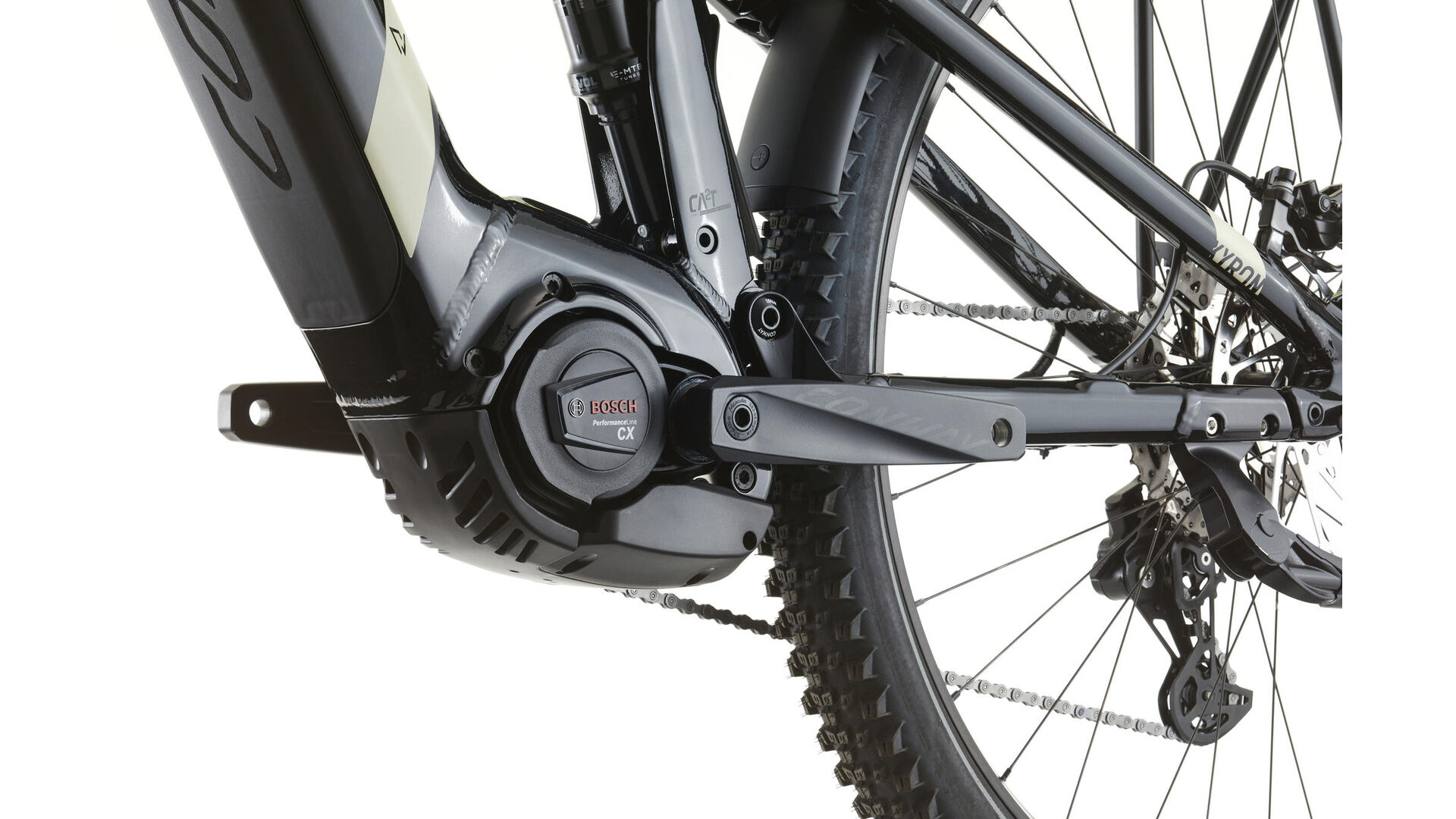

| Drive unit: | BOSCH "Performance Line CX" Gen. 4, BES3 |
| Battery: | BOSCH "PowerTube 625", 625 Wh, BES3, horizontal |
| Charger: | BOSCH 4 A, BES3 |
| Remote: | BOSCH "BRC3300", mini remote |

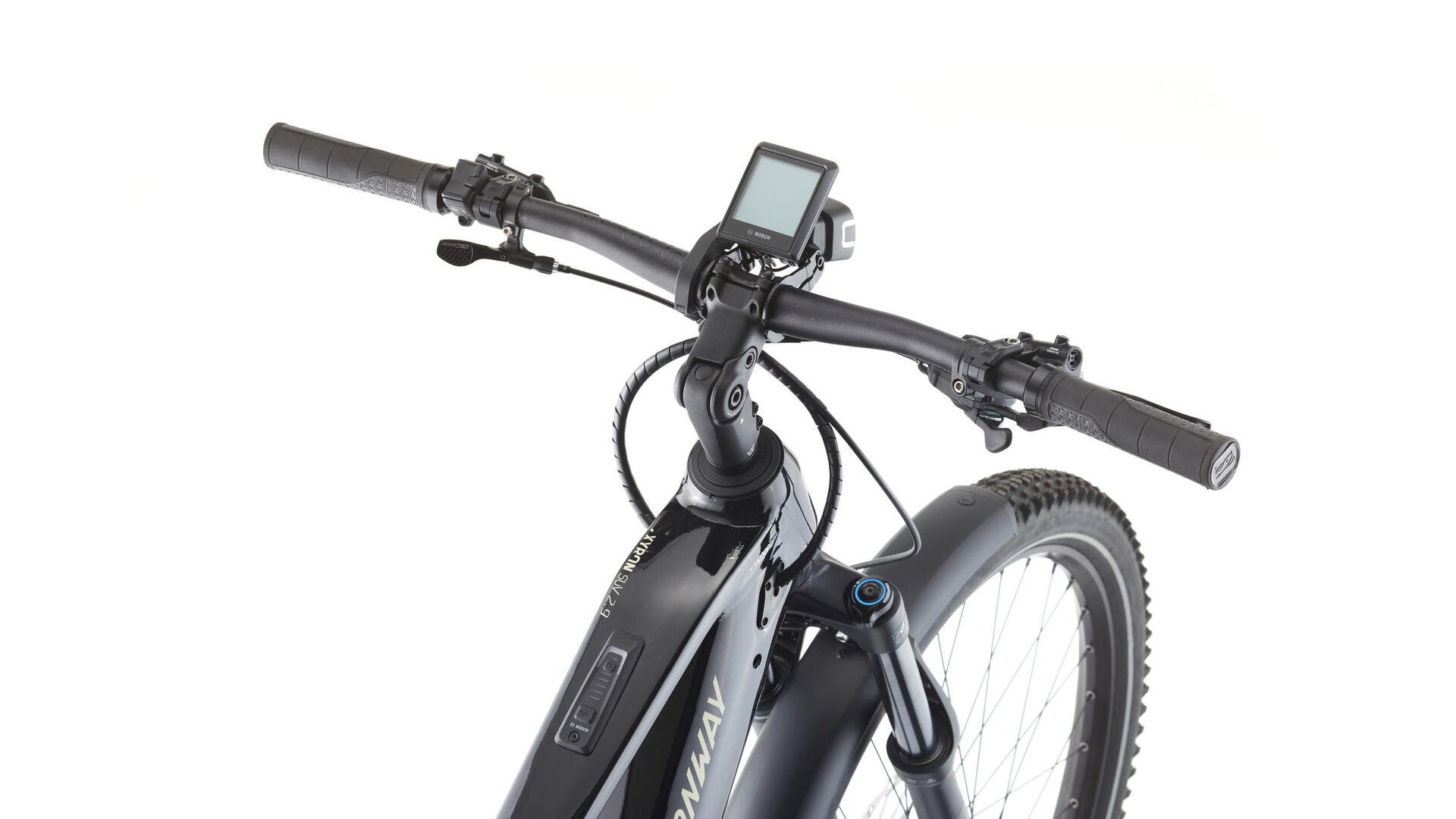

| Display: | BOSCH "Intuvia 100", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black |
| Spokes: | Niro, schwarz |
| Front hub: | SHIMANO "Altus HB-MT400-B", 15 x 110mm, Center Lock, 32 holes, thru axle, black |
| Rear hub: | SHIMANO "Alivio FH-MT400-B", 12 x 148mm, Center Lock, 8-/9-/10-speed (11-speed MTB), 32 holes, thru axle, black |
| Front tires: | CONTINENTAL "Ruban", 58-622, reflex |
| Rear tires: | CONTINENTAL "Ruban", 58-622, reflex |
| Handle bar: | LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black |
| Stem: | LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black |
| Grips: | CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey |
| Saddle: | SELLE ROYAL "2315HRN", unisex, athletic, black |
| Seat post: | CONTEC dropper seatpost "Drop-A-Gogo", aluminium, Ø 31,6mm, 340mm long, 100mm adjustable range, black |
| Mud Guards: | CURANA "Apollo 75", aluminium, 75mm, black |
| Carrier: | ATRAN VELO "Commute Pro", AVS system, F-Fix, black |
| Front light: | CONTEC "DLUX 120 E+", 120 lux |
| Tail light: | CONTEC "TL-335 E-Stop", distance between screws: 50mm, stoplight function |
| Battery Lock: | AXA "New Lock", for PowerTube, BES3 |
| Kickstand: | URSUS "R81 - Wave Rear", adjustable, 40mm hole distance, matt black |
Technical data
| Category: | SUV |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | Bosch |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 40 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 10-speed |
| Transmission: | 1x 10-fach |
| Circuit brand: | Shimano |
| Shifting model: | Deore |
| Brake system: | hydraulic disc brake |
| Travel: | 150 mm |
| Frame travel: | 140 mm |
| Features: | fender |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Colour: | black, beige |
| Colour designation: | black metallic / desert matt |
| Weight: | 29,50 kg |
| EAN | 4251971118287 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 400 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 465 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 422 mm |
| I - Stack: | 633 mm |
| J - Wheel distance: | 1.213 mm |
| A - Seat tube: | 430 mm |
| B - Toptube: | 605 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 465 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 442 mm |
| I - Stack: | 633 mm |
| J - Wheel distance: | 1.233 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 465 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 459 mm |
| I - Stack: | 642 mm |
| J - Wheel distance: | 1.255 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 645 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 465 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 476 mm |
| I - Stack: | 651 mm |
| J - Wheel distance: | 1.276 mm |
| A - Seat tube: | 520 mm |
| B - Toptube: | 665 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 465 mm |
| G - Steering tube: | 150 mm |
| H - Reach: | 493 mm |
| I - Stack: | 660 mm |
| J - Wheel distance: | 1.297 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° | 65° |
| D - Stem length: | 65 mm | 65 mm | 65 mm | 65 mm | 90 mm |
| E - Seat angle: | 76° | 76° | 76° | 76° | 76° |
| F - Kettenstrebe: | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| G - Steering tube: | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| H - Reach: | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
| I - Stack: | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| J - Wheel distance: | 1.213 mm | 1.233 mm | 1.255 mm | 1.276 mm | 1.297 mm |
