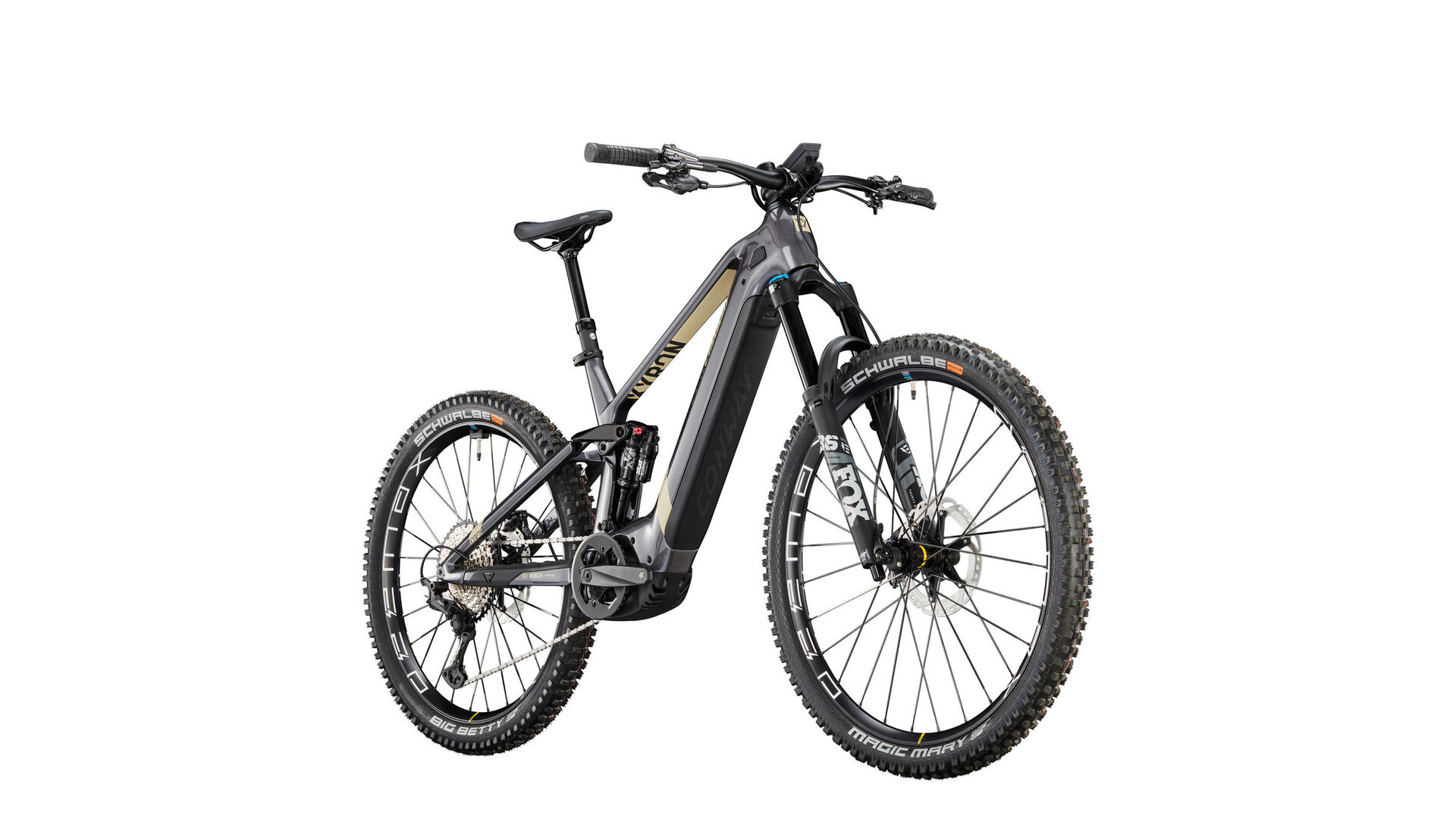

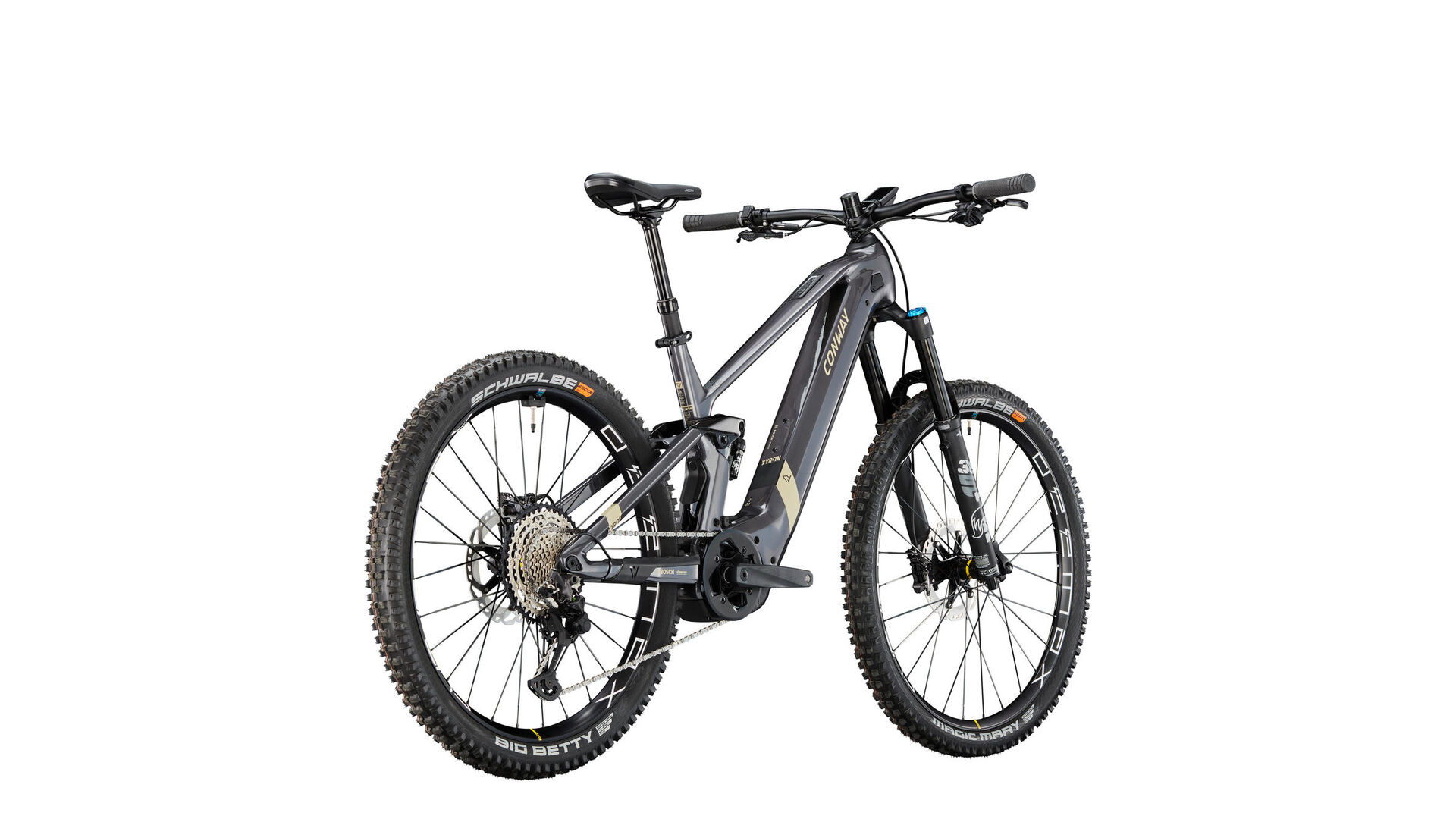

Xyron S 8.9 MX Carbon Full Suspension
shadowgrey metallic / desert matt
6,999.95€ *
E-MOUNTAINBIKE ➜ Material: carbon ✓ Weight: 24,20 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
Product information
"Xyron S 8.9 MX Carbon Full Suspension "
All components of the "Xyron S 8.9 MX Carbon" frame are made of carbon - from the main frame to the rocker and the rear triangle. New is the smart system from Bosch, with which you can connect your bike to the e-bike Flow app. You can find out all the information about biking via the app or read it on the "Kiox300" display.
Uphill, the bike benefits not only from the powerful Bosch "Performance CX" drive, but also from the gear ratio and precise shifting of the sporty derailleur by Shimano. Downhill, the "Xyron S 8.9 MX Carbon" impresses with its Fox suspension with "Performance 36 Float" fork with 160 mm travel and the "Float X" rear shock.
For reliable braking, the large-dimensioned hydraulic disc brakes are installed. The highest-capacity 750-Wh battery is completely hidden in the down tube, which ensures a clean look. The bearings, which are invisible from the outside, also serve this purpose.
To achieve more control and better handling, the "Xyron S 8.9 MX Carbon" comes with a combination of two different wheel sizes, a principle similar to that used in motocross racing. In front 29'' - for better rolling characteristics over obstacles - and rear 27.5'' for maneuverability and agile control. Fitted is the Schwalbe tire "Magic Mary" (62 mm front) and "Big Betty" (65 mm rear).

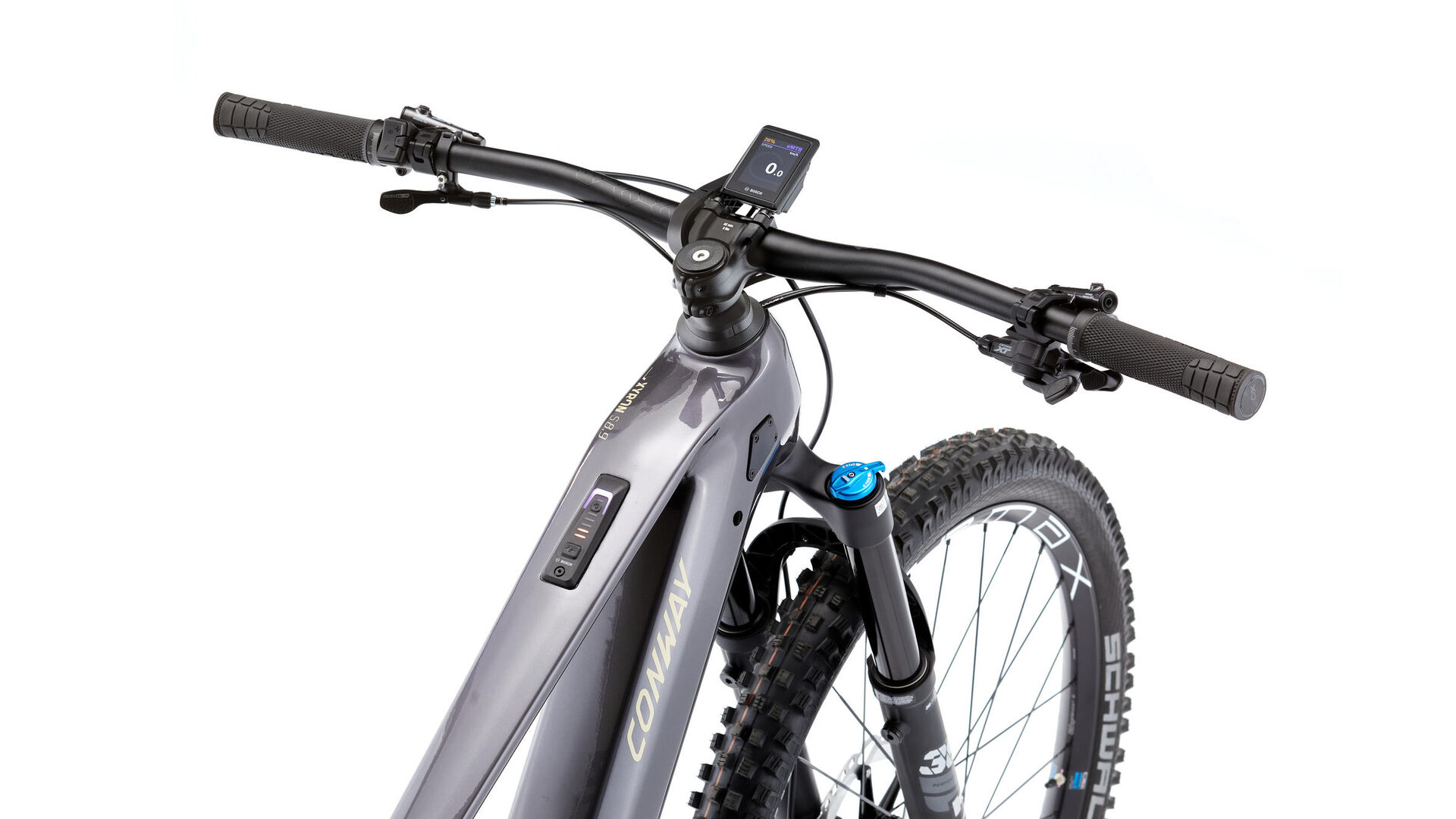

Other details are the 780 mm wide handlebar, so that the bike can maneuver agilely over the trail, and the Contec "Drop-A-Gogo" adjustable seatpost. Always the optimal position on the bike - no matter whether uphill or downhill.
Uphill, the bike benefits not only from the powerful Bosch "Performance CX" drive, but also from the gear ratio and precise shifting of the sporty derailleur by Shimano. Downhill, the "Xyron S 8.9 MX Carbon" impresses with its Fox suspension with "Performance 36 Float" fork with 160 mm travel and the "Float X" rear shock.
For reliable braking, the large-dimensioned hydraulic disc brakes are installed. The highest-capacity 750-Wh battery is completely hidden in the down tube, which ensures a clean look. The bearings, which are invisible from the outside, also serve this purpose.
To achieve more control and better handling, the "Xyron S 8.9 MX Carbon" comes with a combination of two different wheel sizes, a principle similar to that used in motocross racing. In front 29'' - for better rolling characteristics over obstacles - and rear 27.5'' for maneuverability and agile control. Fitted is the Schwalbe tire "Magic Mary" (62 mm front) and "Big Betty" (65 mm rear).
Other details are the 780 mm wide handlebar, so that the bike can maneuver agilely over the trail, and the Contec "Drop-A-Gogo" adjustable seatpost. Always the optimal position on the bike - no matter whether uphill or downhill.
Spezifikationen
| Frame: | Intube Bosch, Gen.4, BES3, carbon, full suspension, 40cm |
| Dropout: | CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20 |
| Fork: | FOX RACING SHOX suspension fork "36 Float Performance E", 29", 160mm travel, tapered, post mount, boost, thru axle, 44mm offset, black |
| Headset: | ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, ICR, 120° blocklock below |

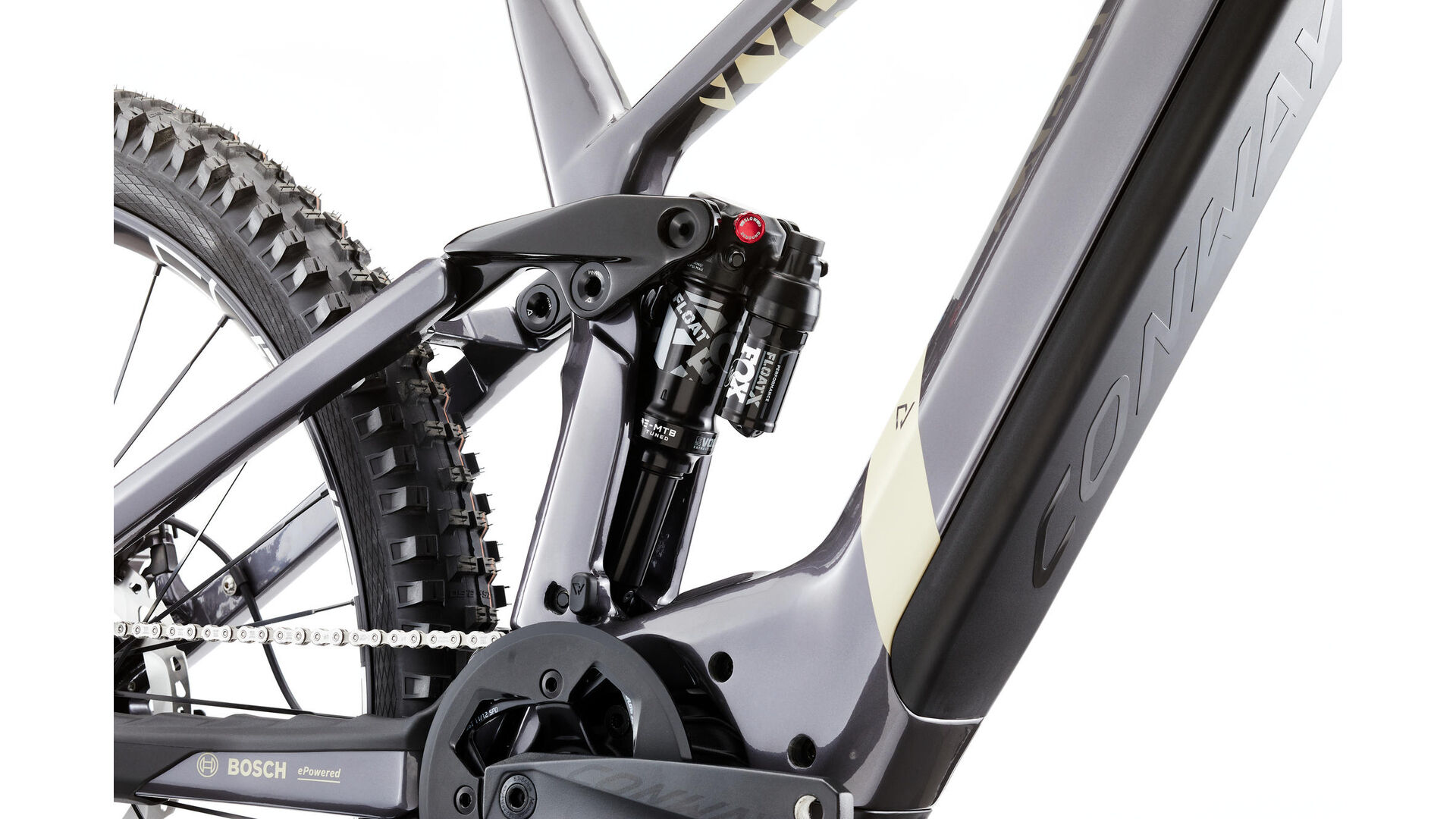

| Rear shock: | FOX "Float X", 185 x 55mm |
| Crank set: | MIRANDA "Epsilon", boost, 165mm, 36 teeth, for Bosch Gen.4, ISIS, black |
| Bremse V.R.: | SHIMANO disc brake "Deore XT BL-M8100 / BR-M8120", hydraulich, 4 piston, post mount |
| Bremse H.R.: | SHIMANO disc brake "Deore XT BL-M8100 / BR-M8120", hydraulic, 4 piston, adapter for 203mm |
| Front rotor: | SHIMANO "SM-RT86", Ø 203mm, Center Lock |
| Rear rotor: | SHIMANO "SM-RT86", Ø 203mm, Center Lock |
| Shifting lever: | SHIMANO "Deore XT SL-M8100", I-Spec, 12-speed |

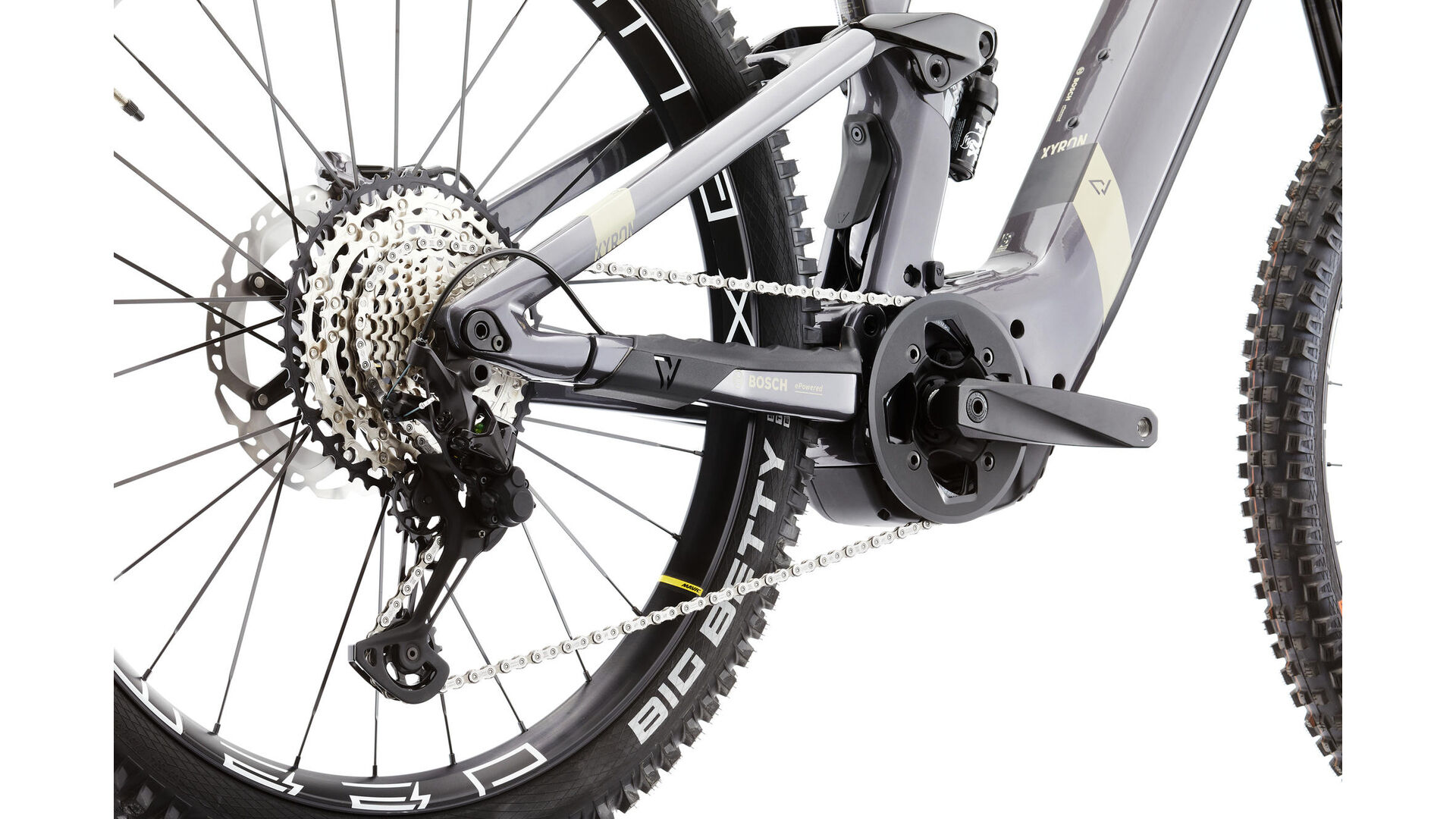

| Rear derailleur: | SHIMANO "Deore XT RD-M8100" |
| Cassette / belt sprocket: | SHIMANO "SLX CS-M7100", 12-speed, 10-51 teeth, Micro Spline |
| Chain / belt: | SHIMANO "SLX CN-M7100" |

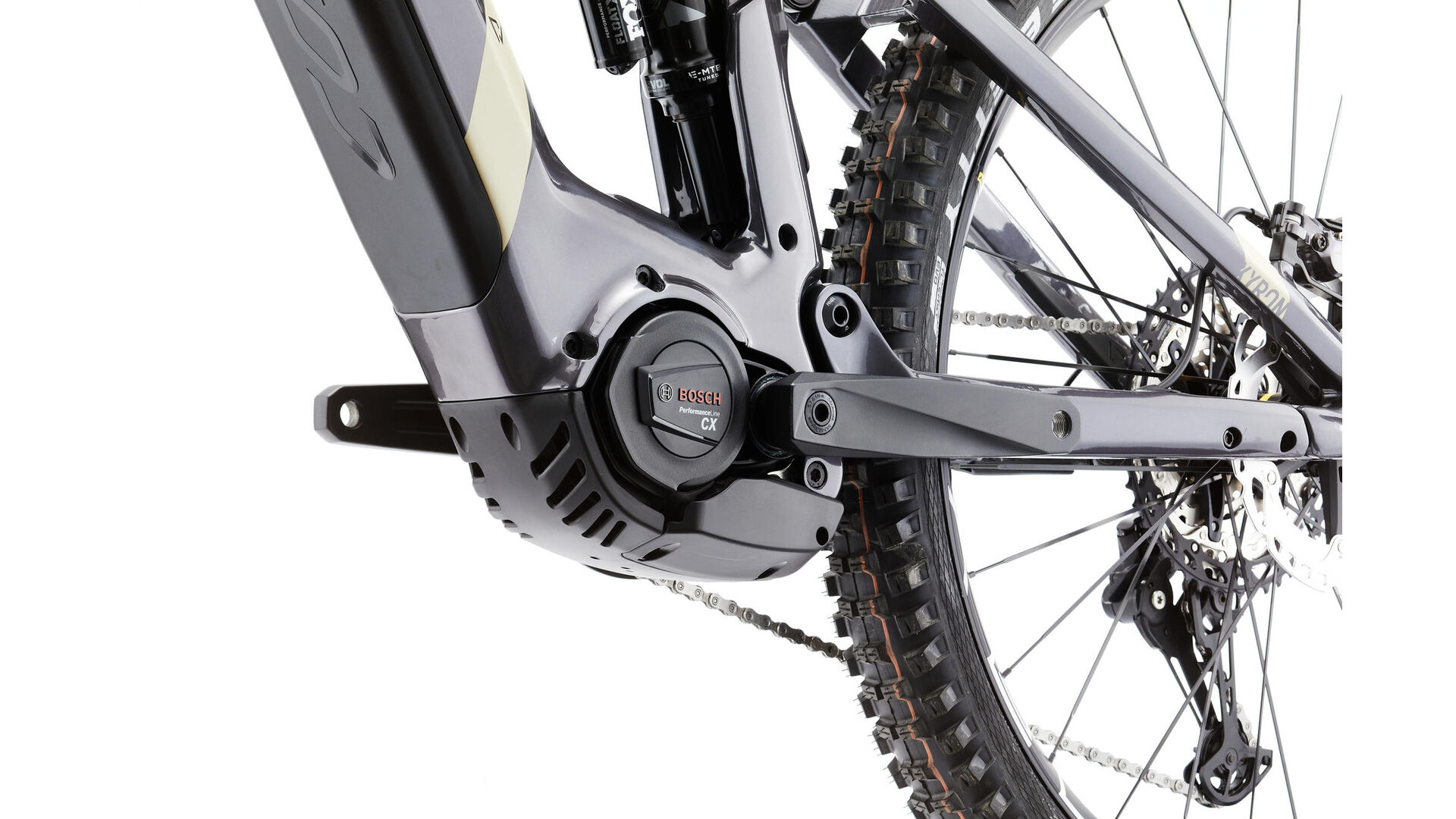

| Drive unit: | BOSCH "Performance Line CX" Gen. 4, BES3 |
| Battery: | BOSCH "PowerTube 750", 750 Wh, BES3, horizontal |
| Charger: | BOSCH 4 A, BES3 |
| Remote: | BOSCH "BRC3300", mini remote |
| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Laufrad V.R.: | MAVIC "E-Deemax S 29", 15 x 110mm, Center Lock |
| Laufrad H.R.: | MAVIC "E-Deemax S 35 27,5", 12 x 148mm, Center Lock, 12-speed Micro Spline |
| Front tires: | SCHWALBE "Magic Marry" Evolution Line, 62-622, Super Gravity, Addix Soft, TLE, foldable, 67 TPI, E-50 |
| Rear tires: | SCHWALBE "Big Betty" Evolution Line, 65-584, Super Gravity, Addix Soft, TLE, foldable, 67 TPI, E-50 |
| Handle bar: | LEVELNINE "Team Riser", 800mm, Ø 31,8mm, backsweep 9°, rise 20mm, black |
| Stem: | LEVELNINE "Team A-Head ICR", 1 1/8", 31,8mm handlebar clamp, 40mm long, black |
| Grips: | SQLAB "70X", size M, 135mm, black |
| Saddle: | FIZIK "Aidon X5", unisex, type 2, regular, black |
| Seat post: | CONTEC dropper seatpost "Drop-A-Gogo", aluminium, Ø 31,6mm, 340mm long, 100mm adjustable range, black |
| Battery Lock: | AXA "New Lock", for PowerTube, BES3 |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | Bosch |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 40 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 160 mm |
| Frame travel: | 160 mm |
| Features: | electronic sliding aid |
| Permissible total weight: | 130 kg |
| Material: | carbon |
| Colour: | grey, beige |
| Colour designation: | shadowgrey metallic / desert matt |
| Weight: | 24,20 kg |
| EAN | 4251971119567 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 400 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 443 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 417 mm |
| I - Stack: | 637 mm |
| J - Wheel distance: | 1.194 mm |
| A - Seat tube: | 430 mm |
| B - Toptube: | 605 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 443 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 437 mm |
| I - Stack: | 637 mm |
| J - Wheel distance: | 1.214 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 443 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 454 mm |
| I - Stack: | 646 mm |
| J - Wheel distance: | 1.234 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 645 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 443 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 472 mm |
| I - Stack: | 655 mm |
| J - Wheel distance: | 1.254 mm |
| A - Seat tube: | 520 mm |
| B - Toptube: | 665 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 443 mm |
| G - Steering tube: | 150 mm |
| H - Reach: | 488 mm |
| I - Stack: | 664 mm |
| J - Wheel distance: | 1.274 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° | 65° |
| D - Stem length: | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| E - Seat angle: | 75° | 75° | 75° | 75° | 75° |
| F - Kettenstrebe: | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| G - Steering tube: | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| H - Reach: | 417 mm | 437 mm | 454 mm | 472 mm | 488 mm |
| I - Stack: | 637 mm | 637 mm | 646 mm | 655 mm | 664 mm |
| J - Wheel distance: | 1.194 mm | 1.214 mm | 1.234 mm | 1.254 mm | 1.274 mm |
