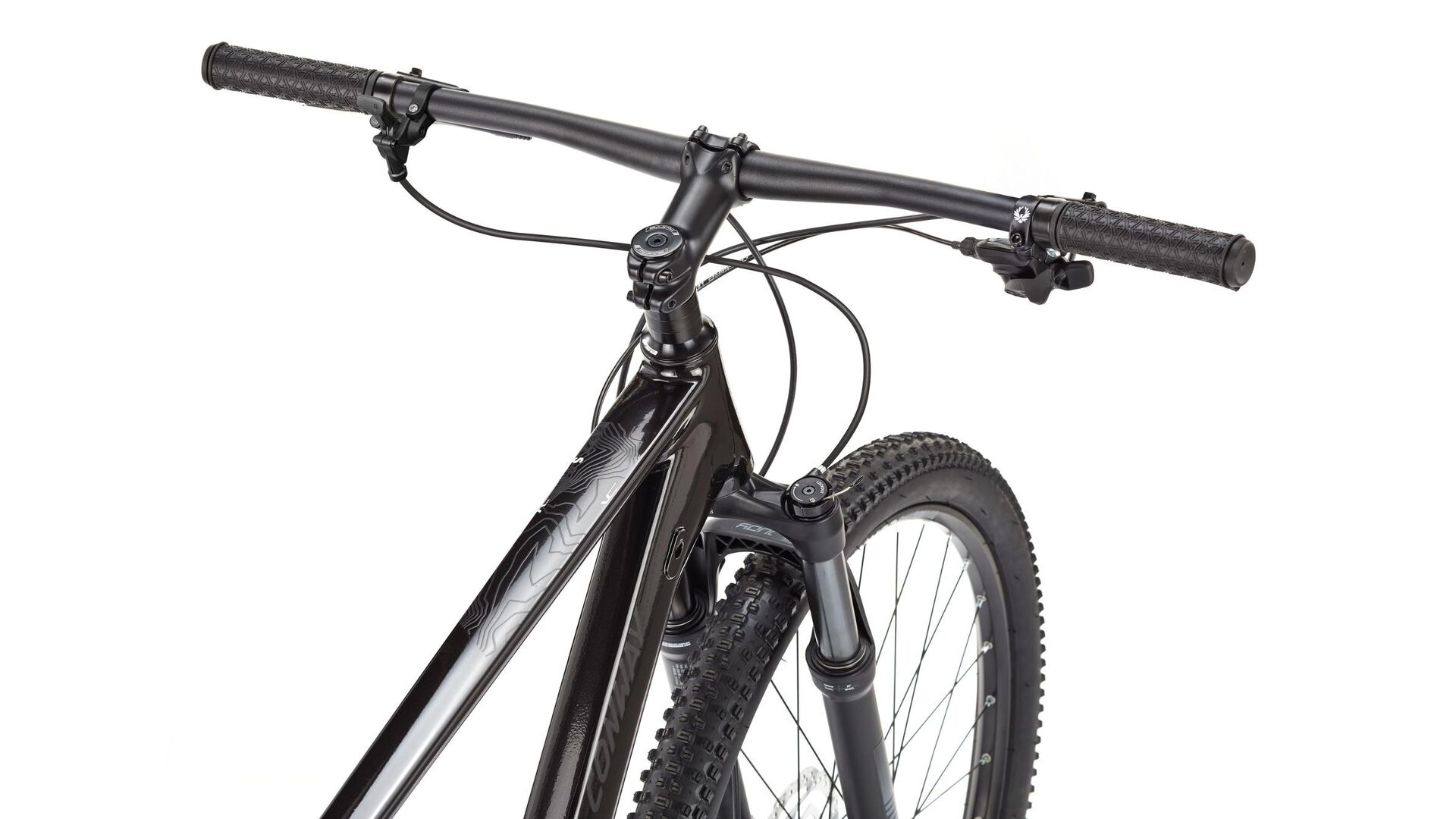

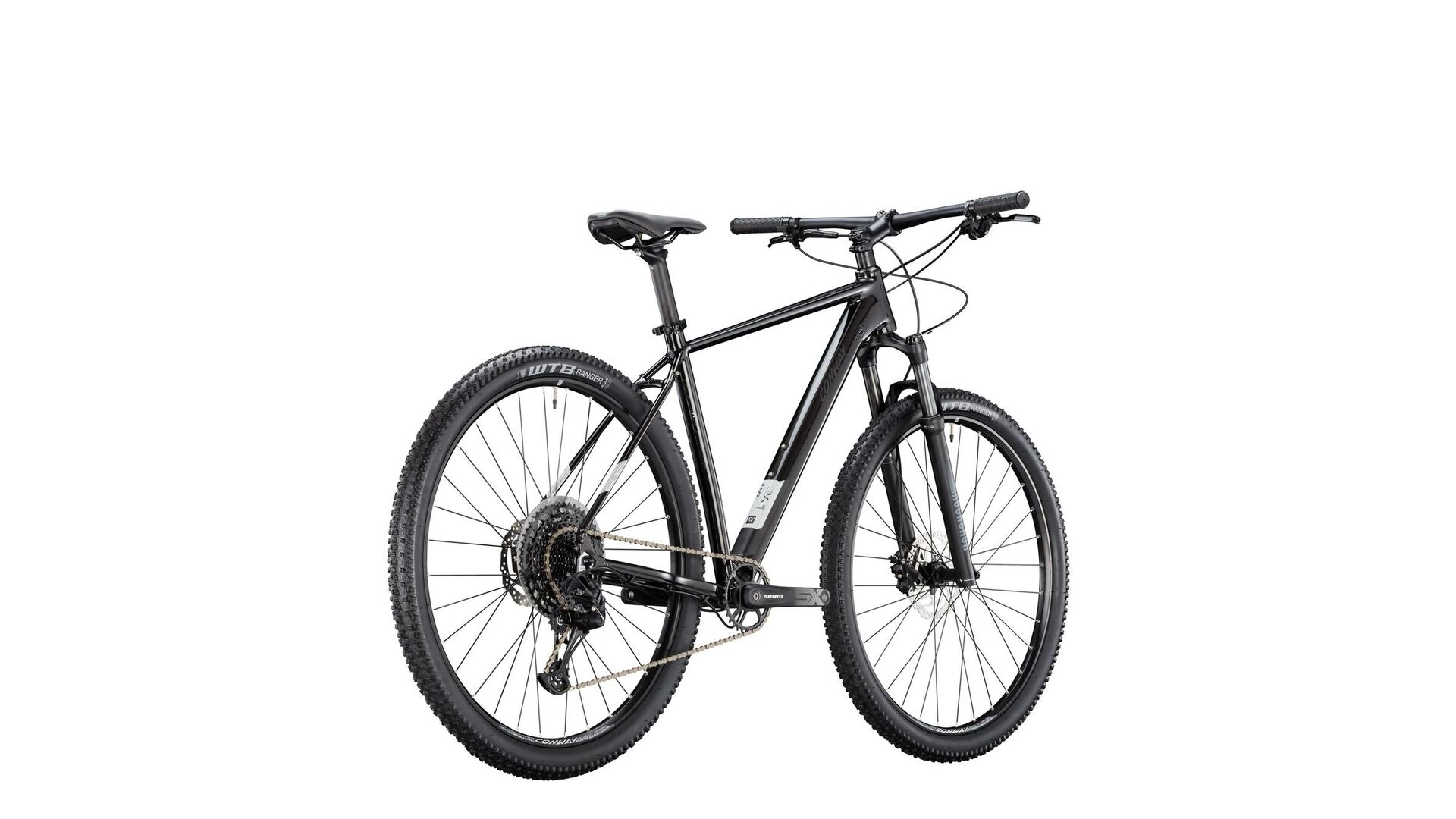

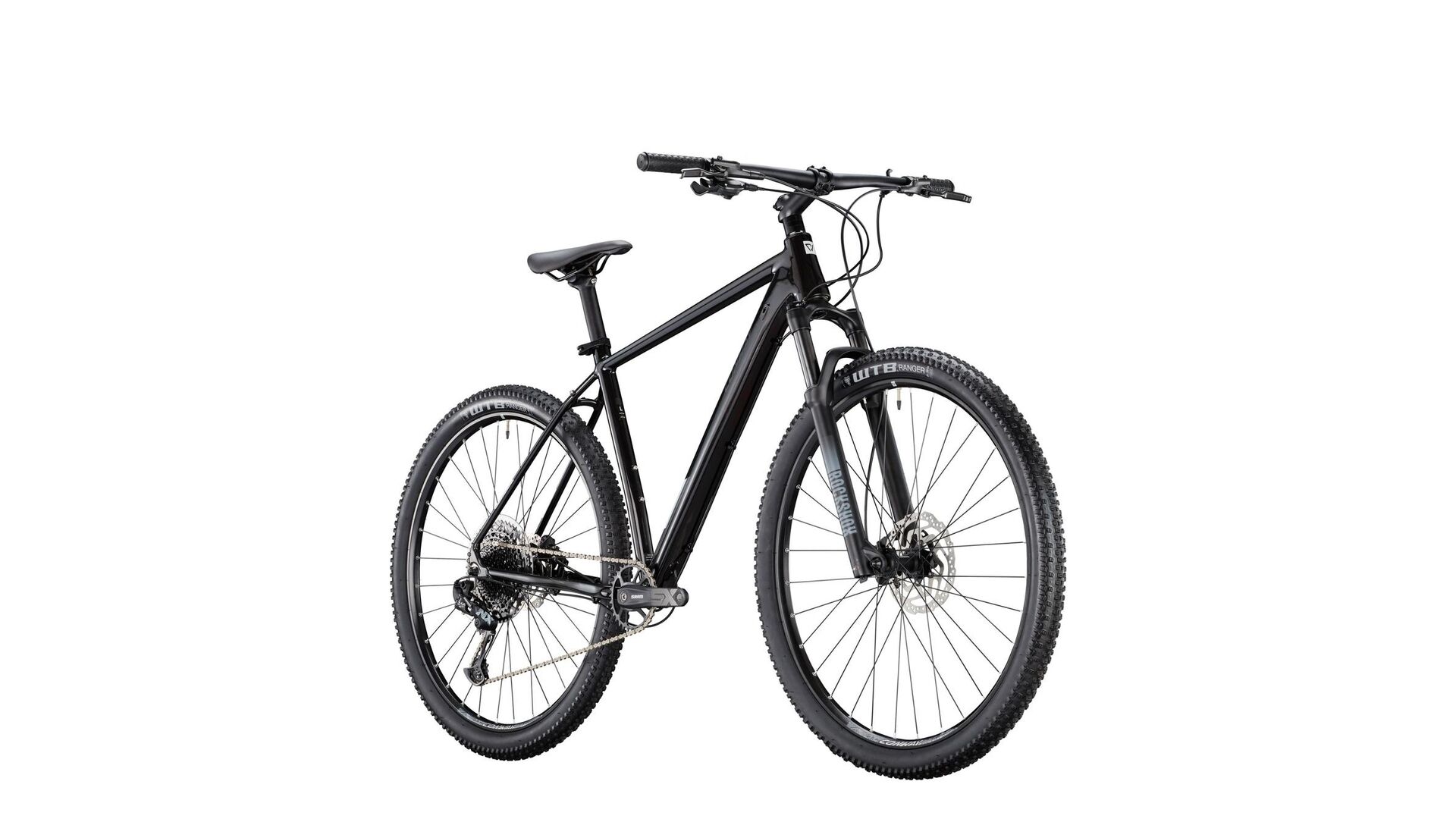

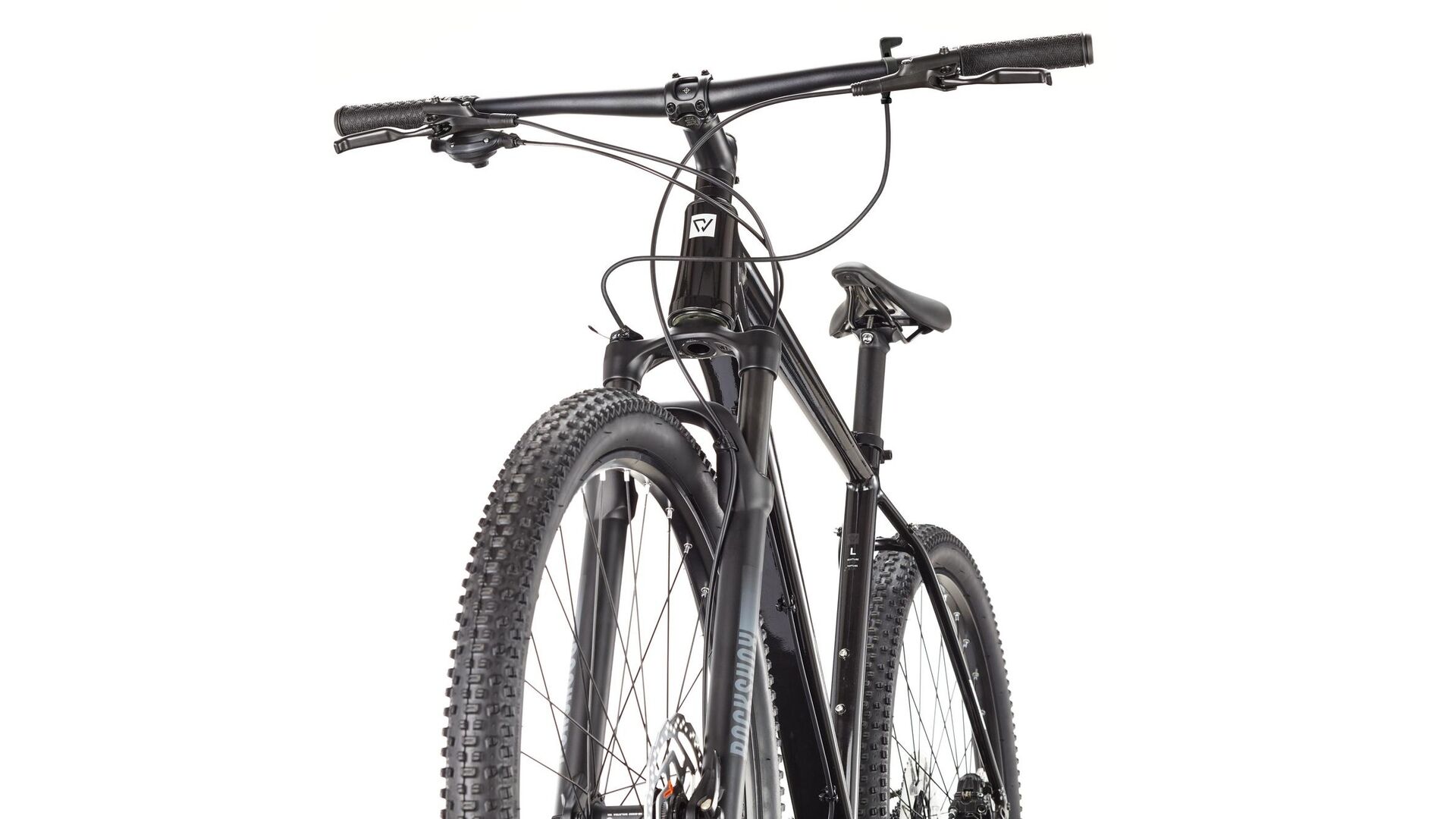

Razz 9.0 Hardtail

999.95€ *
Find frame size
999.95€ *

MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 13,90 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251971168701
  • Product information "Razz 9.0 Hardtail "
    Made for fun! The "Razz 9.0" was made for ambitious hobby riders of all ages: a reliable, high-quality aluminum hardtail with which you can have a lot of fun without having to fear the racing character of a carbon bike.

    With a lightweight aluminum frame and a wheel size of 29", you are perfectly equipped for any challenge. The "NX Eagle" 12-speed derailleur from SRAM ensures precise and fast gear changes, while the hydraulic disc brakes offer you maximum control and safety.

    The 100 mm fork travel and suspension fork make light work of even the toughest trails. With a permissible total weight of 130 kg and a weight of only 13.9 kg, the "Razz 9.0" is robust and yet light enough to accompany you everywhere.

    The well thought-out dimensions such as a seat tube of 508 mm, a top tube of 610 mm and a head tube angle of 70° ensure an optimum riding position and agile handling. The wheelbase of 1,104 mm and the 448 mm chainstay offer you stability and maneuverability at the same time.

    Experience the trails like never before with the "Razz 9.0" - your perfect companion for every adventure!
    Spezifikationen
    Frame: CONWAY, Alu
    Dropout: 0.281.106/5
    Fork: ROCKSHOX "Judy TK Solo Air", 100 mm, Poploc
    Headset: ZS44 / ZS56, Reduzierkonus
    Crank set: SRAM "SX Eagle" 32 Z., 175 mm
    Bottom Bracket: SRAM "Powerspline", 118/73
    Brakes: SHIMANO "BR-MT200"
    Brake lever: SHIMANO "BL-MT200"
    Front rotor: SHIMANO "SM-RT10", 180 mm
    Rear rotor: SHIMANO "SM-RT10", 160 mm
    Shifting lever: SRAM "NX Eagle Trigger"

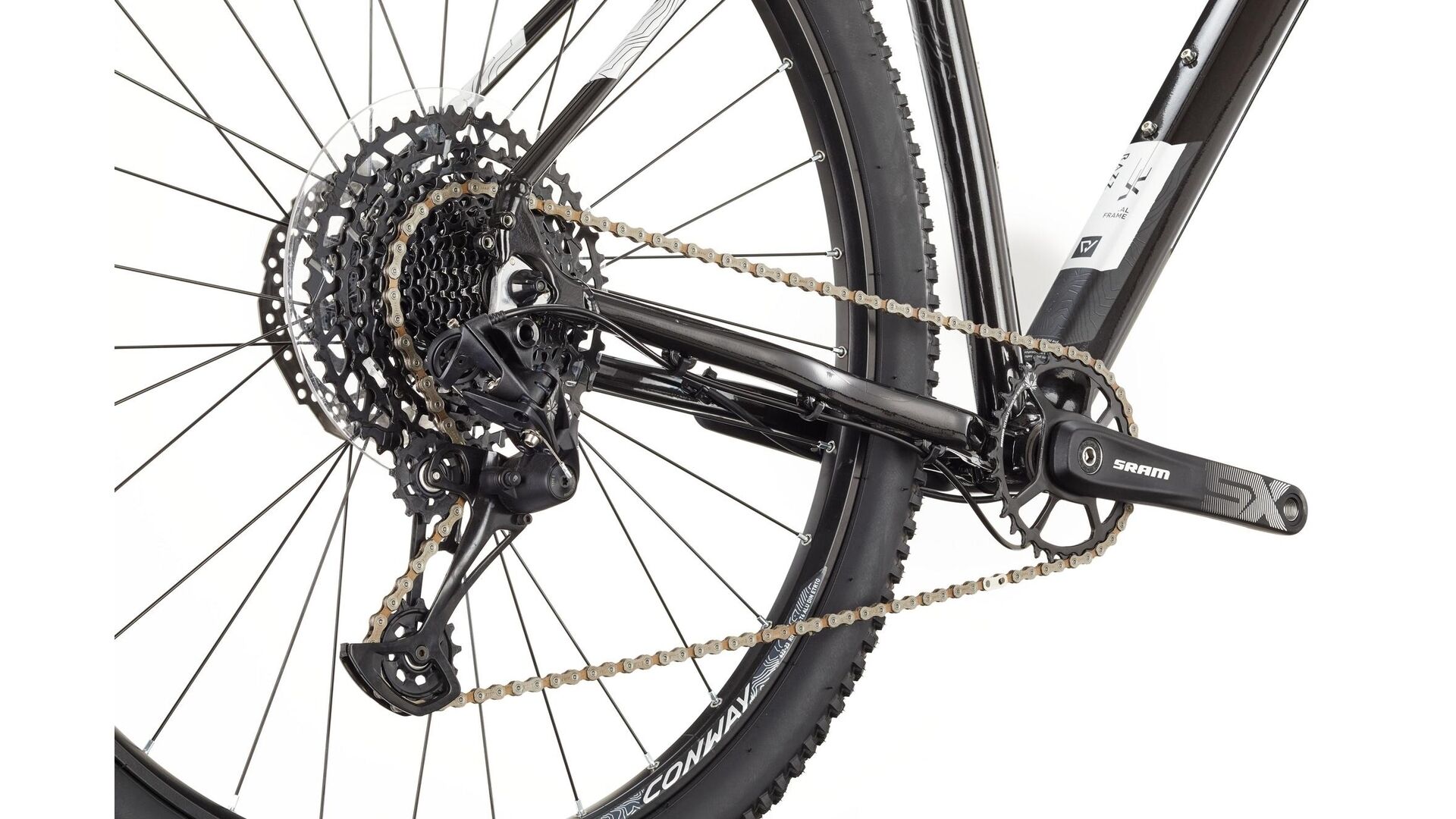

    Rear derailleur: SRAM "NX Eagle", 12speed
    Cassette / belt sprocket: SRAM "PG 1210 Eagle", 11-50 Z.
    Chain / belt: SRAM "SX Eagle"
    Rims: RODI "Blackrock 23"
    Spokes: Stahl schwarz
    Front hub: SHIMANO "HB-M4050" QR
    Rear hub: SHIMANO "FH-M4050" QR
    Front tires: SCHWALBE "Rapid Rob", 57-622
    Rear tires: SCHWALBE "Rapid Rob", 57-622
    Handle bar: CONWAY Riser, Ø 31,8, 720 mm
    Stem: CONWAY, 31,8, 70 mm
    Grips: CONWAY "Sport"
    Saddle: SELLE ROYAL "Vivo Athletic Ergo", He
    Seat post: CONWAY "Patent", 31,6 mm, 350 mm
    Technical data
    Category: Hardtail
    E-bike: no
    Sex: gents
    Frame shape: Hardtail
    Frame size: S
    Frame height: 41 cm
    Wheel size: 29"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: NX
    Brake system: hydraulic disc brake
    Travel: 100 mm
    Features: suspension fork
    Permissible total weight: 130 kg
    Material: aluminium
    Colour: black
    Colour designation: black
    Weight: 13,90 kg
    EAN 4251971168701
    Geometry data
    Logo
    A - Seat tube: 406 mm
    B - Toptube: 570 mm
    C - Steering tube angle: 70°
    D - Stem length: 70 mm
    E - Seat angle: 72°
    F - Kettenstrebe: 448 mm
    G - Steering tube: 120 mm
    H - Reach: 369 mm
    I - Stack: 634 mm
    J - Standover height: 771 mm
    K - Wheel distance: 1.069 mm
    A - Seat tube: 457 mm
    B - Toptube: 590 mm
    C - Steering tube angle: 70°
    D - Stem length: 70 mm
    E - Seat angle: 72°
    F - Kettenstrebe: 448 mm
    G - Steering tube: 120 mm
    H - Reach: 389 mm
    I - Stack: 634 mm
    J - Standover height: 800 mm
    K - Wheel distance: 1.089 mm
    A - Seat tube: 508 mm
    B - Toptube: 610 mm
    C - Steering tube angle: 70°
    D - Stem length: 90 mm
    E - Seat angle: 72°
    F - Kettenstrebe: 448 mm
    G - Steering tube: 120 mm
    H - Reach: 409 mm
    I - Stack: 634 mm
    J - Standover height: 829 mm
    K - Wheel distance: 1.104 mm
    A - Seat tube: 559 mm
    B - Toptube: 630 mm
    C - Steering tube angle: 70°
    D - Stem length: 110 mm
    E - Seat angle: 72°
    F - Kettenstrebe: 448 mm
    G - Steering tube: 140 mm
    H - Reach: 423 mm
    I - Stack: 652 mm
    J - Standover height: 865 mm
    K - Wheel distance: 1.124 mm
    Logo
    S M L XL
    A - Seat tube: 406 mm 457 mm 508 mm 559 mm
    B - Toptube: 570 mm 590 mm 610 mm 630 mm
    C - Steering tube angle: 70° 70° 70° 70°
    D - Stem length: 70 mm 70 mm 90 mm 110 mm
    E - Seat angle: 72° 72° 72° 72°
    F - Kettenstrebe: 448 mm 448 mm 448 mm 448 mm
    G - Steering tube: 120 mm 120 mm 120 mm 140 mm
    H - Reach: 369 mm 389 mm 409 mm 423 mm
    I - Stack: 634 mm 634 mm 634 mm 652 mm
    J - Standover height: 771 mm 800 mm 829 mm 865 mm
    K - Wheel distance: 1.069 mm 1.089 mm 1.104 mm 1.124 mm
