GRV 8.0 SE diamond
1,899.95€ *
GRAVEL ➜ Material: aluminium ✓ Colour: beige ✓ Weight: 10,50 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ ➤ Discover now
Product information
"GRV 8.0 SE diamond "
Discover new paths with the Conway "GRV 8.0 SE". The gravel bike is ideal for rides on endless gravel paths, adventures away from everyday life and countless experiences - regardless of the tour. The lightweight aluminum frame and 28" wheels ensure an effortless riding experience on any surface.
The 2x12-speed Shimano "GRX" derailleur system with its 24 gears offers you a wide selection for every environment and terrain. GRX is the gravel-specific line from Shimano and shines with high reliability and shifting precision even in rough conditions. The disc brakes guarantee reliable braking power at all times.
The Schwalbe "G-One Allround" tires (40 mm) offer you excellent grip on loose surfaces and a smooth ride on asphalt. Thanks to the fine tread, they roll easily and with low vibration, but grip safely and reliably on gravel paths and light, dry trails
The Conway "GRV 8.0 SE" weighs only 10.5 kg, which gives you a light and agile riding experience. The combination of seat tube (530 mm), top tube (575 mm) and stem length (32 mm) ensures optimum control and stability. Ready for your next adventure? With our "GRV 8.0 SE" you are perfectly equipped!
The 2x12-speed Shimano "GRX" derailleur system with its 24 gears offers you a wide selection for every environment and terrain. GRX is the gravel-specific line from Shimano and shines with high reliability and shifting precision even in rough conditions. The disc brakes guarantee reliable braking power at all times.
The Schwalbe "G-One Allround" tires (40 mm) offer you excellent grip on loose surfaces and a smooth ride on asphalt. Thanks to the fine tread, they roll easily and with low vibration, but grip safely and reliably on gravel paths and light, dry trails
The Conway "GRV 8.0 SE" weighs only 10.5 kg, which gives you a light and agile riding experience. The combination of seat tube (530 mm), top tube (575 mm) and stem length (32 mm) ensures optimum control and stability. Ready for your next adventure? With our "GRV 8.0 SE" you are perfectly equipped!
Spezifikationen
| Frame: | CONWAY Gravel, Alu Light |
| Dropout: | 0.281.429/1 |
| Fork: | CARBON "Disc" |
| Headset: | IS42 / IS52 |
| Crank set: | SHIMANO "GRX FC-RX610-2", 30/46 Z., 165mm |
| Bottom Bracket: | SHIMANO "BB-ES300", BSA |
| Brakes: | SHIMANO "GRX BR-RX400" |
| Brake lever: | SHIMANO "GRX ST-RX610" |
| Front rotor: | SHIMANO "SM-RT64", 160 mm |
| Rear rotor: | SHIMANO "SM-RT64", 160 mm |
| Shifting lever: | SHIMANO "GRX ST-RX610" |
| Front derailleur: | SHIMANO "GRX FD-RX820" |
| Rear derailleur: | SHIMANO "GRX RD-RX820", 12speed |
| Cassette / belt sprocket: | SHIMANO "HG710", 11-36 Z. |
| Chain / belt: | SHIMANO "CN-M7100" |
| Rims: | RODI "SNIPER" |
| Spokes: | MACH 1 "PRO" |
| Front hub: | SHIMANO "HB-TC500", 12 x 100 mm |
| Rear hub: | SHIMANO "FH-TC500", 12 x 142mm |
| Front tires: | SCHWALBE "G-One Allround", 40-622 |
| Rear tires: | SCHWALBE "G-One Allround", 40-622 |
| Handle bar: | CONWAY "GRV Bar 400" |
| Stem: | CONWAY "GRV A-Head 80", 31,8mm |
| Grips: | VELO "2K" |
| Saddle: | SELLE ROYAL "SRX" |
| Seat post: | CONWAY Patent, 27,2 mm, 350 mm |
Technical data
| Category: | Gravel Bike |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 49 cm |
| Wheel size: | 28" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 24-speed |
| Transmission: | 2x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | GRX820 |
| Brake system: | hydraulic disc brake |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Colour: | beige |
| Colour designation: | desert matt |
| Weight: | 10,50 kg |
| EAN | 4251971170230 |

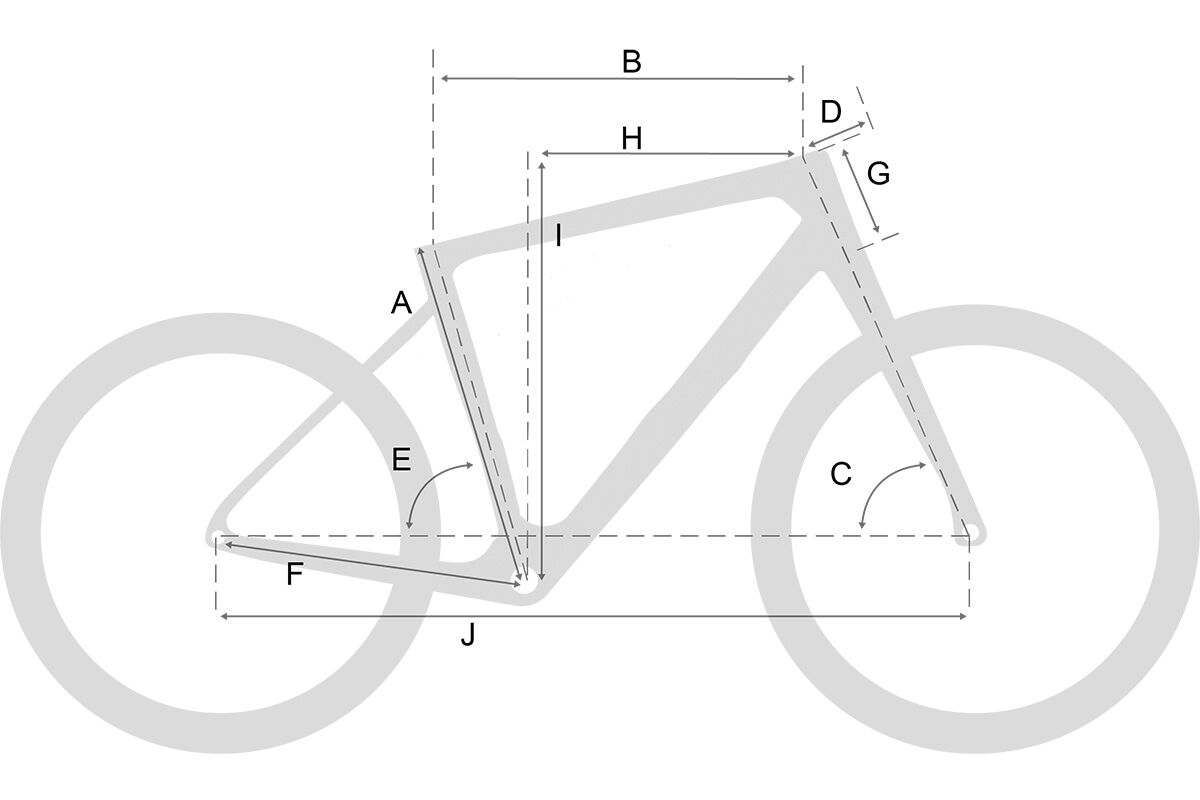

Geometry data
S
M
L
XL
| A - Seat tube: | 490 mm |
| B - Toptube: | 535 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 32 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 377 mm |
| I - Stack: | 549 mm |
| J - Wheel distance: | 1.035 mm |
| A - Seat tube: | 510 mm |
| B - Toptube: | 555 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 32 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 145 mm |
| H - Reach: | 393 mm |
| I - Stack: | 563 mm |
| J - Wheel distance: | 1.056 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 32 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 170 mm |
| H - Reach: | 406 mm |
| I - Stack: | 588 mm |
| J - Wheel distance: | 1.073 mm |
| A - Seat tube: | 550 mm |
| B - Toptube: | 595 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 32 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 190 mm |
| H - Reach: | 420 mm |
| I - Stack: | 609 mm |
| J - Wheel distance: | 1.089 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 490 mm | 510 mm | 530 mm | 550 mm |
| B - Toptube: | 535 mm | 555 mm | 575 mm | 595 mm |
| C - Steering tube angle: | 70° | 70° | 71° | 71° |
| D - Stem length: | 32 mm | 32 mm | 32 mm | 32 mm |
| E - Seat angle: | 74° | 74° | 74° | 74° |
| F - Kettenstrebe: | 435 mm | 435 mm | 435 mm | 435 mm |
| G - Steering tube: | 130 mm | 145 mm | 170 mm | 190 mm |
| H - Reach: | 377 mm | 393 mm | 406 mm | 420 mm |
| I - Stack: | 549 mm | 563 mm | 588 mm | 609 mm |
| J - Wheel distance: | 1.035 mm | 1.056 mm | 1.073 mm | 1.089 mm |
