RLC FS 7.9 Full Suspension
red metallic / pearlwhite
4,299.95€ *
MOUNTAINBIKE ➜ Material: Carbon ✓ Gewicht: 11,70 kg ✓ Laufradgröße: 29" ✓ Zulässiges Gesamtgewicht: 130 kg ✓ Gänge: 12-Gang ✓ ➤ Jetzt entdecken
Product information
"RLC FS 7.9 Full Suspension "
Multipurpose - that describes the new "RLC FS 7.9" best, because it is equally made for marathon and cross-country trails in the World Cup as well as for your home trail and sporty training tours. It was developed together with the CONWAY Factory Racing Team.
New this year is the ROCKSHOX "SID SL Select+" fork with a travel of now 110mm. But if you want to turn the race full suspension into a real marathon and downcountry bike, you can also install a suspension fork with 120mm travel. Looking further ahead: The "RLC FS" series is already prepared for the FOX "Livevalve" suspension system. The components can be installed without any problems.

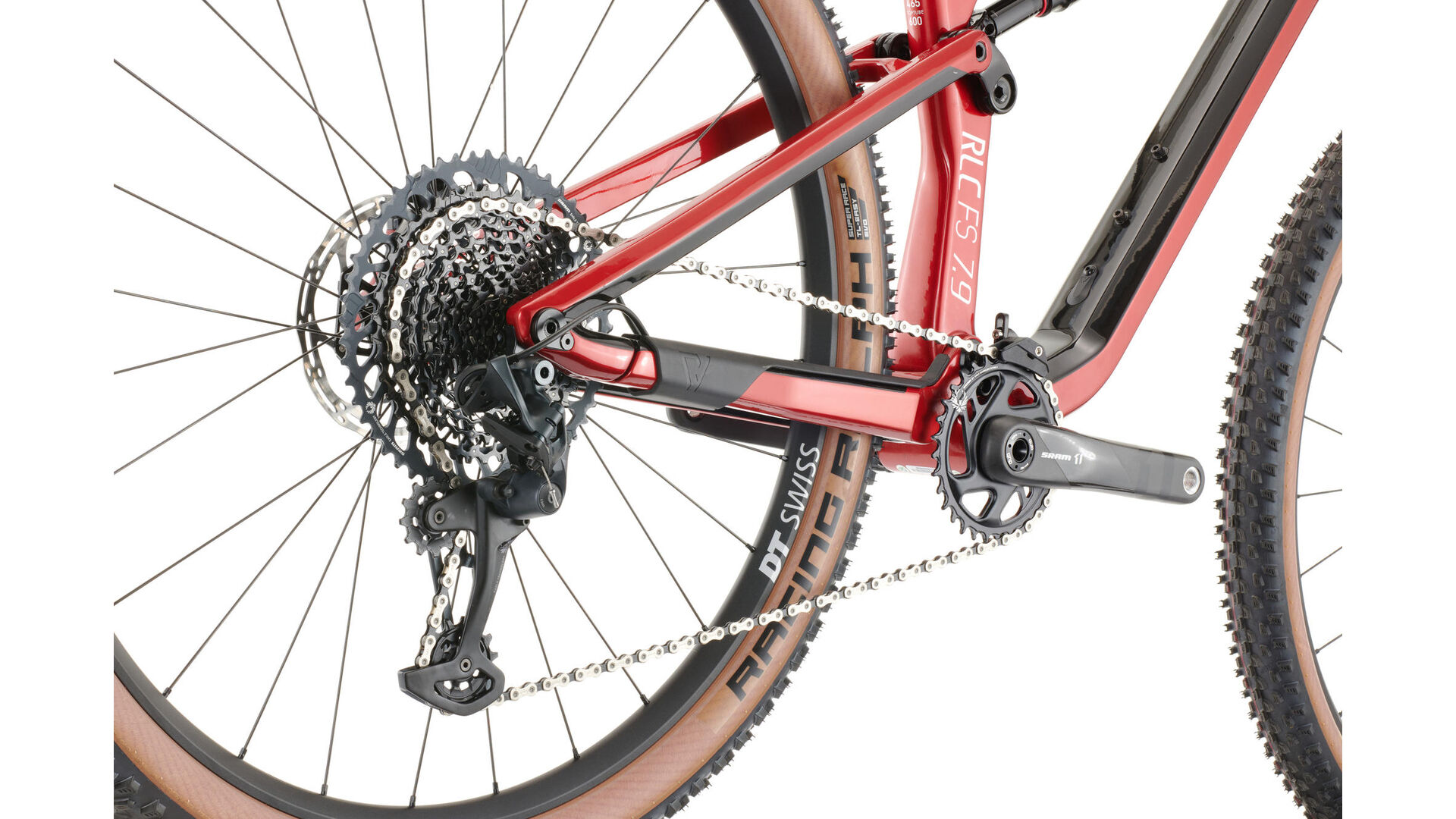

On tours, the race full suspension comes standard with the 12 gears of the SRAM "XX1 Eagle" shifting including "X1" carbon crank, speed comes out precisely with the SRAM "Level T" disc stoppers. Strong drive, on the other hand, it gets thanks to the DT SWISS "XR 1700" wheels, which are equipped with the proven SCHWALBE tire combo - front "Racing Ray", rear "Racing Ralph". They are each 60mm wide and made in Evolution quality with Addix compound and transparent sidewalls.
New this year is the ROCKSHOX "SID SL Select+" fork with a travel of now 110mm. But if you want to turn the race full suspension into a real marathon and downcountry bike, you can also install a suspension fork with 120mm travel. Looking further ahead: The "RLC FS" series is already prepared for the FOX "Livevalve" suspension system. The components can be installed without any problems.
On tours, the race full suspension comes standard with the 12 gears of the SRAM "XX1 Eagle" shifting including "X1" carbon crank, speed comes out precisely with the SRAM "Level T" disc stoppers. Strong drive, on the other hand, it gets thanks to the DT SWISS "XR 1700" wheels, which are equipped with the proven SCHWALBE tire combo - front "Racing Ray", rear "Racing Ralph". They are each 60mm wide and made in Evolution quality with Addix compound and transparent sidewalls.
Spezifikationen
| Frame: | CONWAY Fully Carbon RLC |
| Dropout: | 0281180/0 |
| Fork: | ROCKSHOX "SID SL Select +", 110 mm |
| Headset: | ZS44 / ZS56 |
| Rear shock: | ROCKSHOX "SID LUXE Select +" |
| Crank set: | SRAM "X1 Carbon", Boost DUB, 32 Z., 170 mm |
| Bottom Bracket: | SRAM "PF 92 DUB" |
| Brakes: | SRAM "Level TL" |
| Brake lever: | SRAM "Level TL" |
| Front rotor: | SRAM "Centerline X", 180 mm |
| Rear rotor: | SRAM "Centerline X", 160 mm |
| Shifting lever: | SRAM "XX1 Eagle Trigger" |
| Rear derailleur: | SRAM "XX1 Eagle", 12speed |
| Cassette / belt sprocket: | SRAM "PG 1275 Eagle", 10-52 Z. |
| Chain / belt: | SRAM "GX Eagle" |
| Rims: | DT SWISS "XR1700" |
| Spokes: | DT SWISS |
| Front hub: | DT SWISS "XR1700", 15x110 mm |
| Rear hub: | DT SWISS "XR1700", 12x148 mm |
| Front tires: | SCHWALBE "Racing Ray", EVO Addix, 60-622, faltbar |
| Rear tires: | SCHWALBE "Racing Ralph", EVO Addix, 60-622, faltbar |
| Handle bar: | RACEFACE "Next Carbon", Ø 31,8, 720 mm |
| Stem: | RACEFACE "Turbine", 31,8 mm, 60 mm |
| Grips: | SQlab "70X" |
| Saddle: | CONWAY "1489 super light" |
| Seat post: | RACEFACE "Next Carbon", 27,2 mm, 400 mm |
Technical data
| Category: | Full Suspension |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 43 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | SRAM |
| Shifting model: | XX1 |
| Brake system: | hydraulic disc brake |
| Travel: | 110 mm |
| Frame travel: | 100 mm |
| Features: | damper |
| Permissible total weight: | 130 kg |
| Material: | carbon |
| Type: | Article |
| Colour: | red, white |
| Colour designation: | red metallic / pearlwhite |
| Weight: | 11,70 kg |
| EAN | 4251507978460 |
Geometry data
S
M
L
XL
| A - Seat tube: | 425 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 60 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 95 mm |
| H - Reach: | 424 mm |
| I - Stack: | 586 mm |
| J - Wheel distance: | 1.119 mm |
| A - Seat tube: | 465 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 70 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 449 mm |
| I - Stack: | 595 mm |
| J - Wheel distance: | 1.147 mm |
| A - Seat tube: | 505 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 473 mm |
| I - Stack: | 604 mm |
| J - Wheel distance: | 1.175 mm |
| A - Seat tube: | 545 mm |
| B - Toptube: | 650 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 495 mm |
| I - Stack: | 618 mm |
| J - Wheel distance: | 1.203 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 425 mm | 465 mm | 505 mm | 545 mm |
| B - Toptube: | 575 mm | 600 mm | 625 mm | 650 mm |
| C - Steering tube angle: | 70° | 70° | 70° | 70° |
| D - Stem length: | 60 mm | 70 mm | 80 mm | 80 mm |
| E - Seat angle: | 72° | 72° | 72° | 72° |
| F - Kettenstrebe: | 445 mm | 445 mm | 445 mm | 445 mm |
| G - Steering tube: | 95 mm | 105 mm | 115 mm | 130 mm |
| H - Reach: | 424 mm | 449 mm | 473 mm | 495 mm |
| I - Stack: | 586 mm | 595 mm | 604 mm | 618 mm |
| J - Wheel distance: | 1.119 mm | 1.147 mm | 1.175 mm | 1.203 mm |
