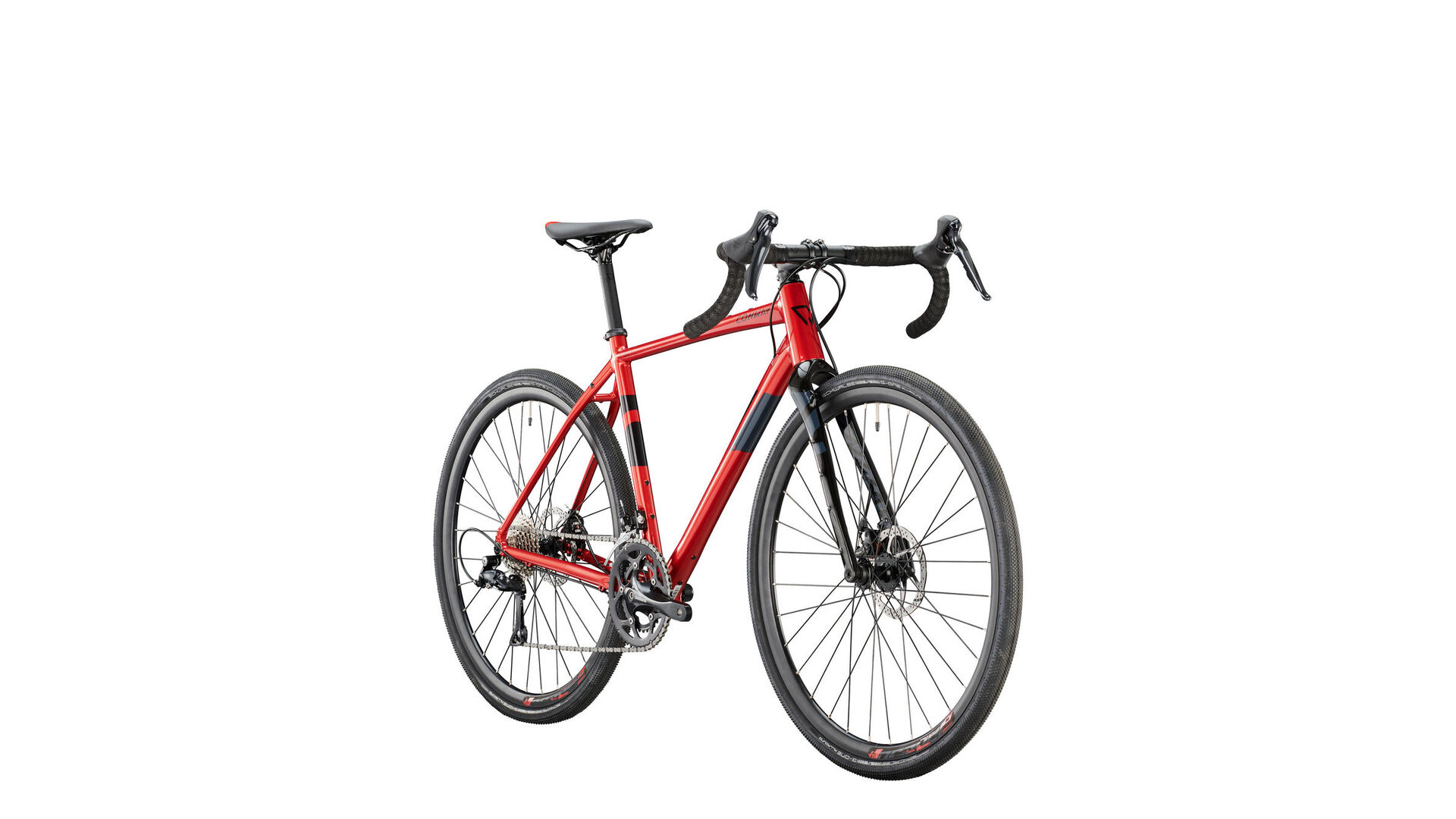

GRV 3.0 Gravel Bike
red metallic / black metallic
1,599.95€ *
GRAVEL ➜ Material: aluminium ✓ Weight: 10,80 kg ✓ Wheel size: 28" ✓ Brake system: mechanic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
Product information
"GRV 3.0 Gravel Bike "
You are looking for a bike that is sporty and suitable for touring at the same time? One with which you can go on new adventures in the summer? The CONWAY "GRV 3.0" offers you exactly these possibilities. As an entry-level model, the gravel bike is solidly equipped with derailleur gears and 18 speeds (2x9-speed) to spend several days on the road, even in hilly terrain.
The lightweight and sturdy aluminum frame gives you a moderately sporty riding position. It is pleasantly compact and is agile to steer, but always has the smoothness to confidently keep the track on long distances. The frame also offers plenty of tire clearance: 40 mm wide "Terra Trail" from CONTINENTAL are fitted to the 28er wheels. This gives you plenty of comfort when you are on the road with the Gravel Tourer over longer distances and over hill and dale.
The lightweight and sturdy aluminum frame gives you a moderately sporty riding position. It is pleasantly compact and is agile to steer, but always has the smoothness to confidently keep the track on long distances. The frame also offers plenty of tire clearance: 40 mm wide "Terra Trail" from CONTINENTAL are fitted to the 28er wheels. This gives you plenty of comfort when you are on the road with the Gravel Tourer over longer distances and over hill and dale.
Spezifikationen
| Frame: | aluminium, diamond, 49cm |
| Dropout: | CONWAY for GRV aluminium, from mod.21 |
| Fork: | 28", carbon, tapered 1 1/8" - 1.5", 300mm shaft, flat mount, black |
| Headset: | GLORY WHEEL IS42/28,6 / IS52/40, 1 1/8" - 1,5" |
| Crank set: | SHIMANO "Sora FC-R345", 170mm, 34/50 teeth, 9-speed |
| Bottom Bracket: | SHIMANO "BB-ES300", Octalink, BSA, axle length: 113mm, housing width: 68mm |
| Bremse V.R.: | TEKTRO "Spyre MD-C610C", front, mechanic, flat mount, adapter for 160mm |
| Bremse H.R.: | TEKTRO "Spyre MD-C610C", rear, mechanic, flat mount, adapter for 160mm |
| Brake lever: | SHIMANO "Sora, ST-R300-L / ST-R3000-R", 2-/9-speed |
| Front rotor: | TEKTRO "TR-19", Ø 160mm, 6-hole |
| Rear rotor: | TEKTRO "TR-19", Ø 160mm, 6-hole |
| Shifting lever: | SHIMANO "Sora ST-R3000" |
| Front derailleur: | SHIMANO "Sora FD-R3000" |
| Rear derailleur: | SHIMANO "Sora RD-R3000" |
| Cassette / belt sprocket: | SHIMANO "Alivio CS-HG400", 9-speed, 11-34 teeth |
| Chain / belt: | SHIMANO "CN-HG53" |
| Rims: | MACH1 "Gravel 19", 19-622, 32 holes, disc brake, black |
| Spokes: | Niro, schwarz |
| Front hub: | FORMULA "RX512", 12 x 100mm, 6-hole, 32 holes, thru axle, black |
| Rear hub: | FORMULA "RX300", 12 x 142mm, 6-hole, 11-peed HG, 32 holes, thru axle, black |
| Front tires: | CONTINENTAL "Terra Trail", 40-622 |
| Rear tires: | CONTINENTAL "Terra Trail", 40-622 |
| Handle bar: | CONWAY "GRV Bar", 400mm, Ø 31,8mm, reach 70mm, drop 125mm, flare 6°, black |
| Stem: | CONWAY "GRV A-Head", 1 1/8", 31,8mm handlebar clamp, 80mm long, angle 7°, black |
| Grips: | FIZIK "Tempo Microtex Bondcush Soft", black |
| Saddle: | SELLE ROYAL "1220", unisex, athletic, black |
| Seat post: | CONWAY, Ø 27,2mm, 350mm long, black |
Technical data
| Category: | Gravel Bike |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 49 cm |
| Wheel size: | 28" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 18-speed |
| Transmission: | 2x 9-fach |
| Circuit brand: | Shimano |
| Shifting model: | Sora |
| Brake system: | mechanic disc brake |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Colour: | red, black |
| Colour designation: | red metallic / black metallic |
| Weight: | 10,80 kg |
| EAN | 4251507983303 |
Geometry data
S
M
L
XL
| A - Seat tube: | 490 mm |
| B - Toptube: | 535 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 377 mm |
| I - Stack: | 549 mm |
| J - Wheel distance: | 1.035 mm |
| A - Seat tube: | 510 mm |
| B - Toptube: | 555 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 145 mm |
| H - Reach: | 393 mm |
| I - Stack: | 563 mm |
| J - Wheel distance: | 1.056 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 170 mm |
| H - Reach: | 406 mm |
| I - Stack: | 588 mm |
| J - Wheel distance: | 1.073 mm |
| A - Seat tube: | 550 mm |
| B - Toptube: | 595 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 100 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 190 mm |
| H - Reach: | 420 mm |
| I - Stack: | 609 mm |
| J - Wheel distance: | 1.089 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 490 mm | 510 mm | 530 mm | 550 mm |
| B - Toptube: | 535 mm | 555 mm | 575 mm | 595 mm |
| C - Steering tube angle: | 70° | 70° | 71° | 71° |
| D - Stem length: | 80 mm | 80 mm | 90 mm | 100 mm |
| E - Seat angle: | 74° | 74° | 74° | 74° |
| F - Kettenstrebe: | 435 mm | 435 mm | 435 mm | 435 mm |
| G - Steering tube: | 130 mm | 145 mm | 170 mm | 190 mm |
| H - Reach: | 377 mm | 393 mm | 406 mm | 420 mm |
| I - Stack: | 549 mm | 563 mm | 588 mm | 609 mm |
| J - Wheel distance: | 1.035 mm | 1.056 mm | 1.073 mm | 1.089 mm |
